Λεπτομέρειες για το προϊόν
Τόπος καταγωγής: Κίνα
Μάρκα: EXCAR
Πιστοποίηση: CE
Αριθμό μοντέλου: A1M2
Έγγραφο: Excar catalog.pdf
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min: 1
Τιμή: USD4100-6000 per unit
Χρόνος παράδοσης: 10-30 ημέρες
Όροι πληρωμής: L/C, T/T
Δυνατότητα προσφοράς: 10000 το χρόνο

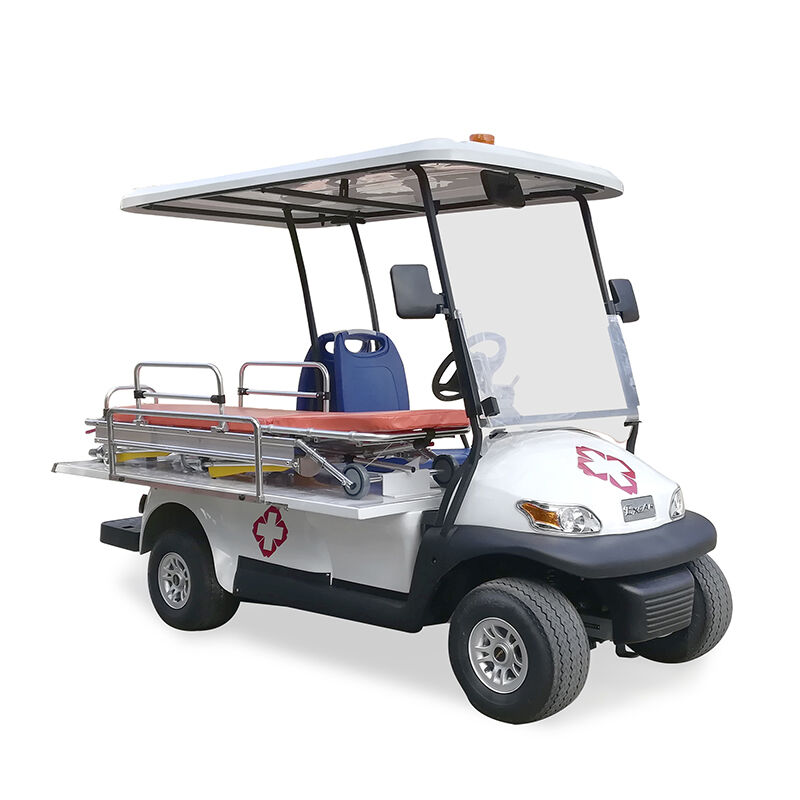

Excar model:A1M2
| DIMENSION | 2930×1220×1800 MM | PAYLOAD | 360 KG |
| F/R TRACK | 860/970 MM | CIMBING CAPACITY (FULL LOAD) | 25% |
| WHEELBASE | 1670 MM | CHASSIS | STEEL CHASSIS |
| GROUND CLEARANCE | 114 MM | BODY PANEL | PP ENGINEERING PLASTIC |
| MIN. TURNING RADIUS | 2.9 M | MAX. FORWARD SPEED | 30 KM/H |
| NET WEIGHT | 280 KG | RANGE | 60-80KM |
| CONFIGURATION(AC system) | |||
| MOTOR | MOTOR 48V 5KW | BRAKE SYSTEM | REAR SELF-ADJUSTING DRUM BRAKE |
| CONTROLLER | CURTIS 48V 350A / 400A | STEERING SYSTEM | DUAL SELF-ADJUSTING RACK & PINION |
| BATTERY | LEAD-ACID OR LITHIUM BATTERY | F/R SUSPENSION | MAPHERSON INDEPENT SPRING SUSPENSION |
| CHARGER | 48V 17A / 25A REGULATOR | TYRE | 205/50-10 TYRE |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake or Four Wheels Disc Brake;
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the cart to fit your request;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15-30 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
Color Options
Rims Options
